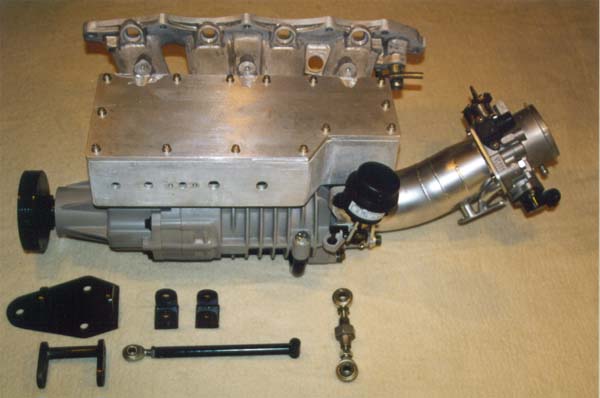

Cast B-series manifold with intercooled plenum.

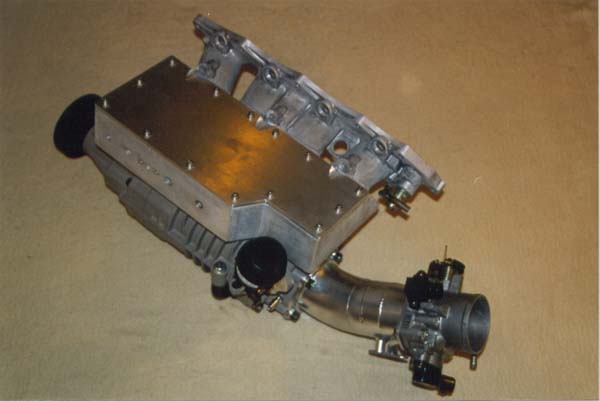

Cast manifold, fab'd "tube" for 1.6-1.8L B-series. First self contained intercooler (that we know of).

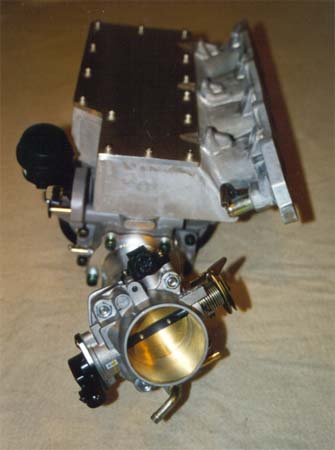

Open wide!

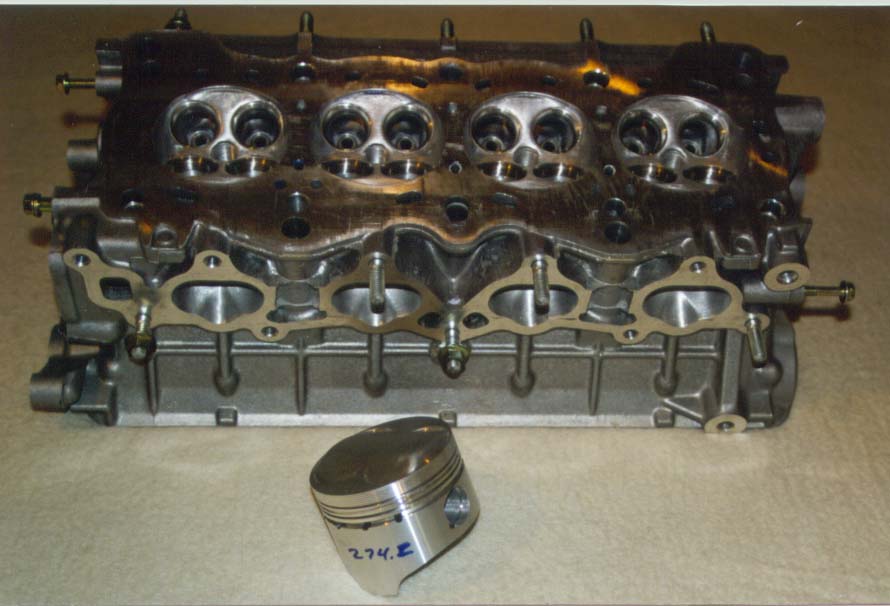

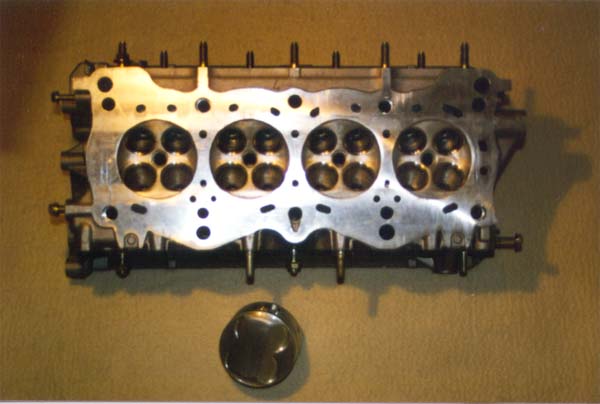

A picture's worth a thousand words! 1.6L SOHC head and piston. 1.6L DOHC head and custom forged piston. (blower piston!)

For more information visit Frank Lin's T.O.O./ENDYN resource.

The HYBRID page is proud to offer these pictures for your viewing pleasure. A big thanks to everyone who helped out.

-joe
