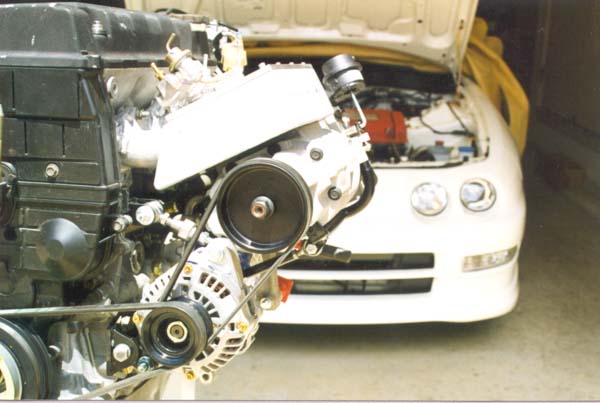

The "R's" ready for another dose!

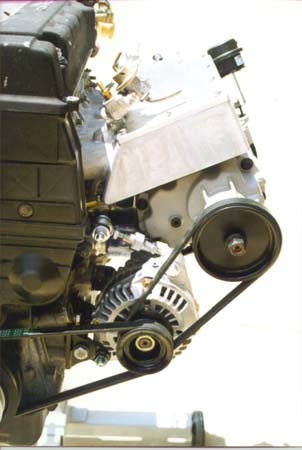

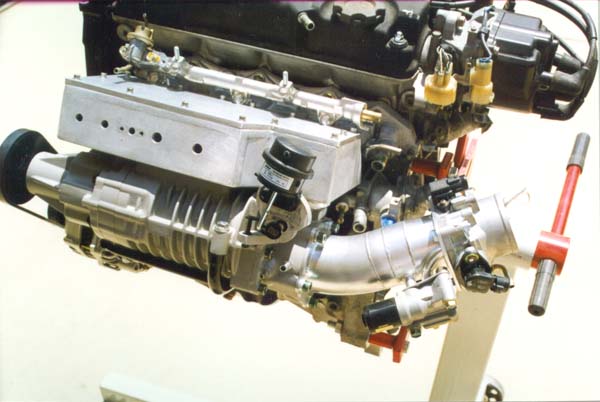

The T.B. duct connects right up to the factory located air cleaner.

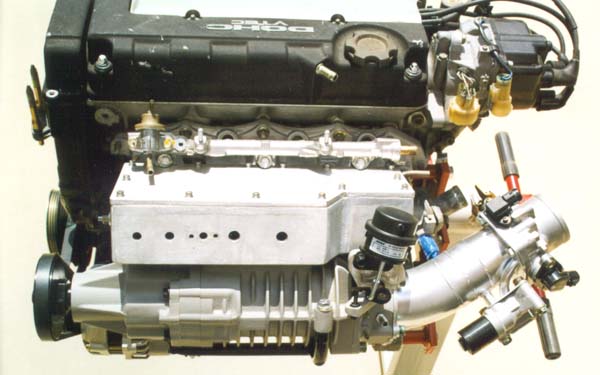

Manifold contains a prototype intercooler that turns the air while cooling.

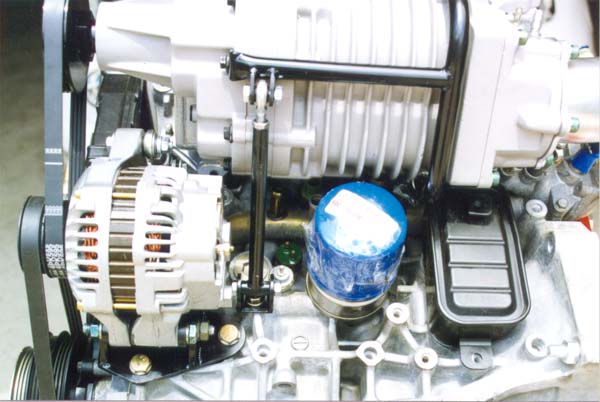

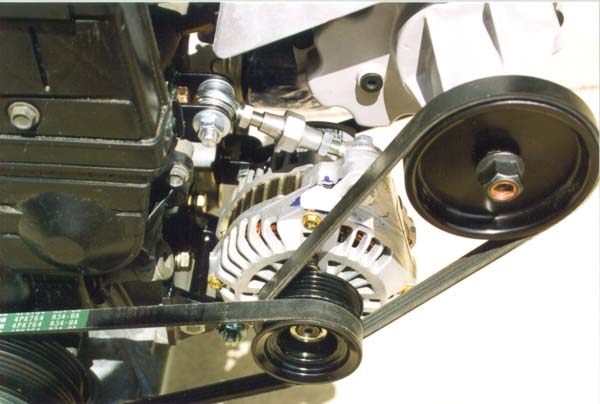

Patented double hinged alternator mount. Allows individual belt tensioning without idlers. Simple adjustment. Left and right hand threads for belt tensioning. We even take pride in our bracing design and fabrication.

For more information visit Frank Lin's T.O.O./ENDYN resource.

The HYBRID page is proud to offer these pictures for your viewing pleasure. A big thanks to everyone who helped out.

-joe
