Honda Hybrids

Adrian's CX-GSR Hybrid

Engine

  • 1995 B18C1 motor
  • B16B (Civic Type-R) camshafts
  • Y80 transmission
  • JDM Integra Type-R 98 final drive (4.785)
  • DC Sports SS header
  • Civic Si Insrument cluster
  • HUD (Heads-Up-Display) Tach/Speedometer
  • Trust BL exhaust

  • Modified to fit



Suspension, Brakes and Wheels

  • Ground Control coilover spring conversion kits

  • Eibach ERS springs,
    375lbs/8" front, 250lbs/8" rear
  • ST anti-roll bars

  • (Front & Rear)
  • Integra GSR rear disk brakes
  • Integra GSR master brake cylinder
  • Integra RS proportioning vlave
  • 17x7 Advanti Racing Power wheels

  • Racing Seneka lookalikes
  • 215/40-ZR17 (89W)

  • Pirelli P7000 Summer Tires
    Soft and grippy

Chassis

  • 92 Civic CX base
  • Full interior

Performance estimate (G-Tech Pro)

  • 0-60mph - 5.2 s
  • 1/4 mile - 14.2 s @ 96.7
Personally, I wouldn't take these results too seriously. Not until I can get better conditions like a proper dragstrip or road course.

More pictures

Cool pictures taken out in the Sonoran Desert

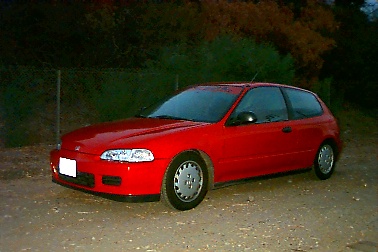

Ramanan's VX-GSR Rocket

Knocking on 11's - article by Joe Rodgers


Chassis

  • 92 Civic VX Base
  • Chassis preparation.
  • Special doors and hatch that are gutted
  • Plexiglass rear hatch
  • Nuespeed race springs
  • Stock Civic shocks

Engine

  • B18C1 Main block
  • 11.0:1 JE Pistons (stock bore)
  • TOTAL SEAL (gapless) rings
  • Shot-Peened P72 Rods (stock GS-R)
  • Unorthodox Racing Crank Pulley
  • 1995 GS-R Head w/ mild port job by Belaray

  • (not milled)
  • Type-R Intake Cam, SI-R Exhaust Cam
  • Ported 1995 GS-R dual-runner manifold

  • Butterflies in the 2nd runner removed
  • Ported Throttle Body
  • PYR Cam sprockets


Click on the image to see more pictures  of Ramanan's ride

Performance Records

  • 1/4 mile - 12.71 s @ 106mph

  • October 1997, Palmdale, CA, elev. 3000ft


Igniton  and Electronics

  •  CRANE HI-6 and PS-91
  • His own custom ECU and 'wiring'
  • BOSCH Inline Fuel Pump
  • SPOON VTEC Controller
  • Magnecor Plug Wires
  • NGK '7' plugs

Transmission

  • Dual Diaphragm Pressure plate w/ stock clutch disk
  • Integra LS flywheel (for the moment)
  • Wheels and tires
  • 20x8x14 Mickey Thompson ET Drag
  • Stock Honda 14" steel wheels

More Photos
